Knowledge Base Management

What is a Knowledge Base?

A knowledge base is a collection of documents that agents can search and reference when answering questions. When a user asks a question:

1. Semantic Search: The system searches the knowledge base for relevant content
2. Retrieval: Top matching document chunks are retrieved
3. Context Injection: Relevant content is added to the agent’s context
4. Response Generation: Agent generates response using both its training and the retrieved knowledge

Benefits of Knowledge Bases

Accuracy: Agents provide information based on your organization’s actual documents and policies

Currency: Update knowledge by adding new documents - no need to retrain models

Source Attribution: Agents can cite specific documents or sources

Consistency: All agents using the same knowledge base provide consistent information

Specialization: Create domain-specific knowledge bases for different agent types

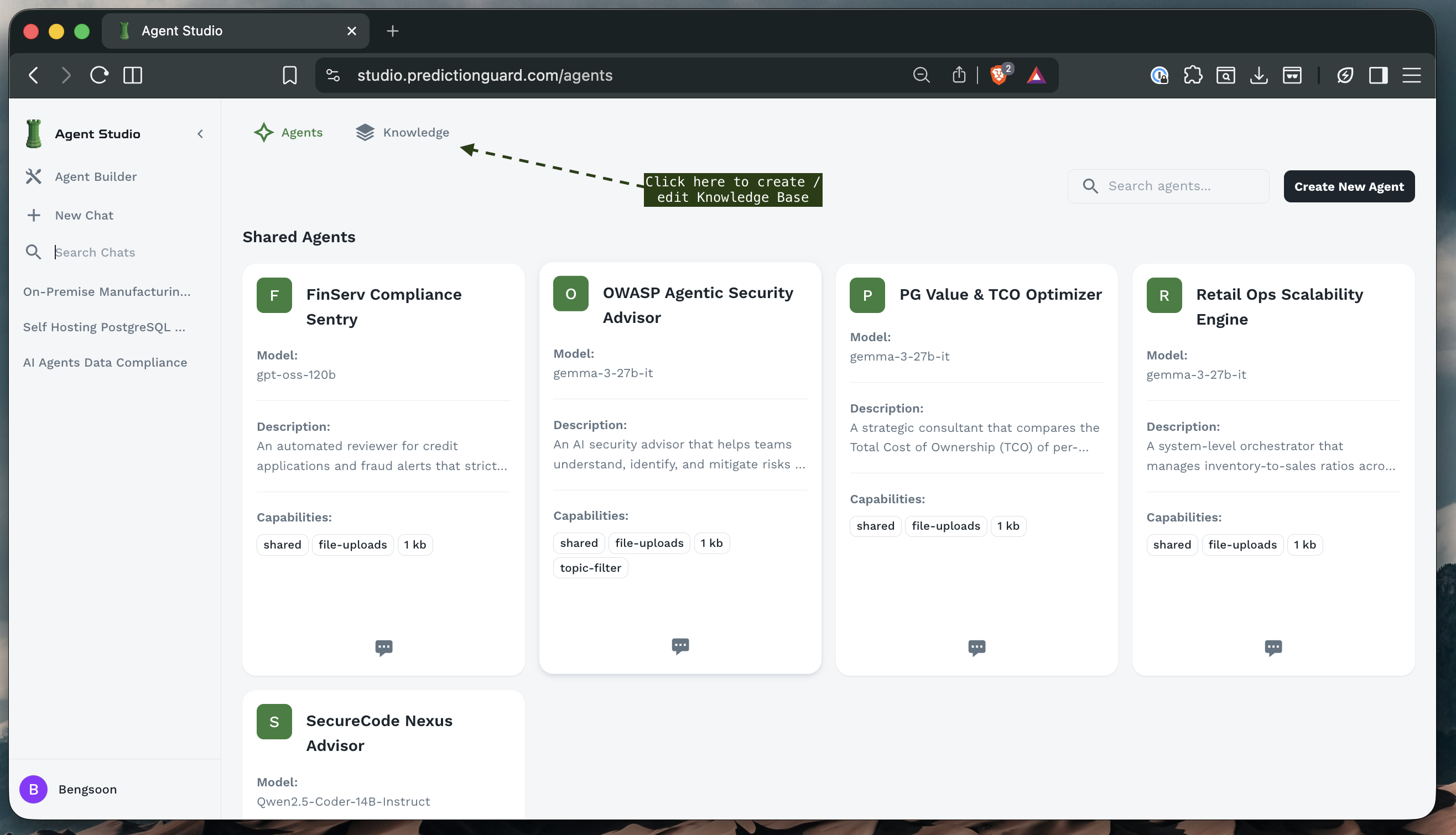

Accessing Knowledge Base Management

Navigate to the Knowledge section from the left sidebar or top navigation.

The Knowledge Base interface provides:

• Tabs: Switch between Agents and Knowledge sections
• Knowledge Base List: View all your organization’s knowledge bases
• Create Button: Create new knowledge bases
• Search: Find specific knowledge bases

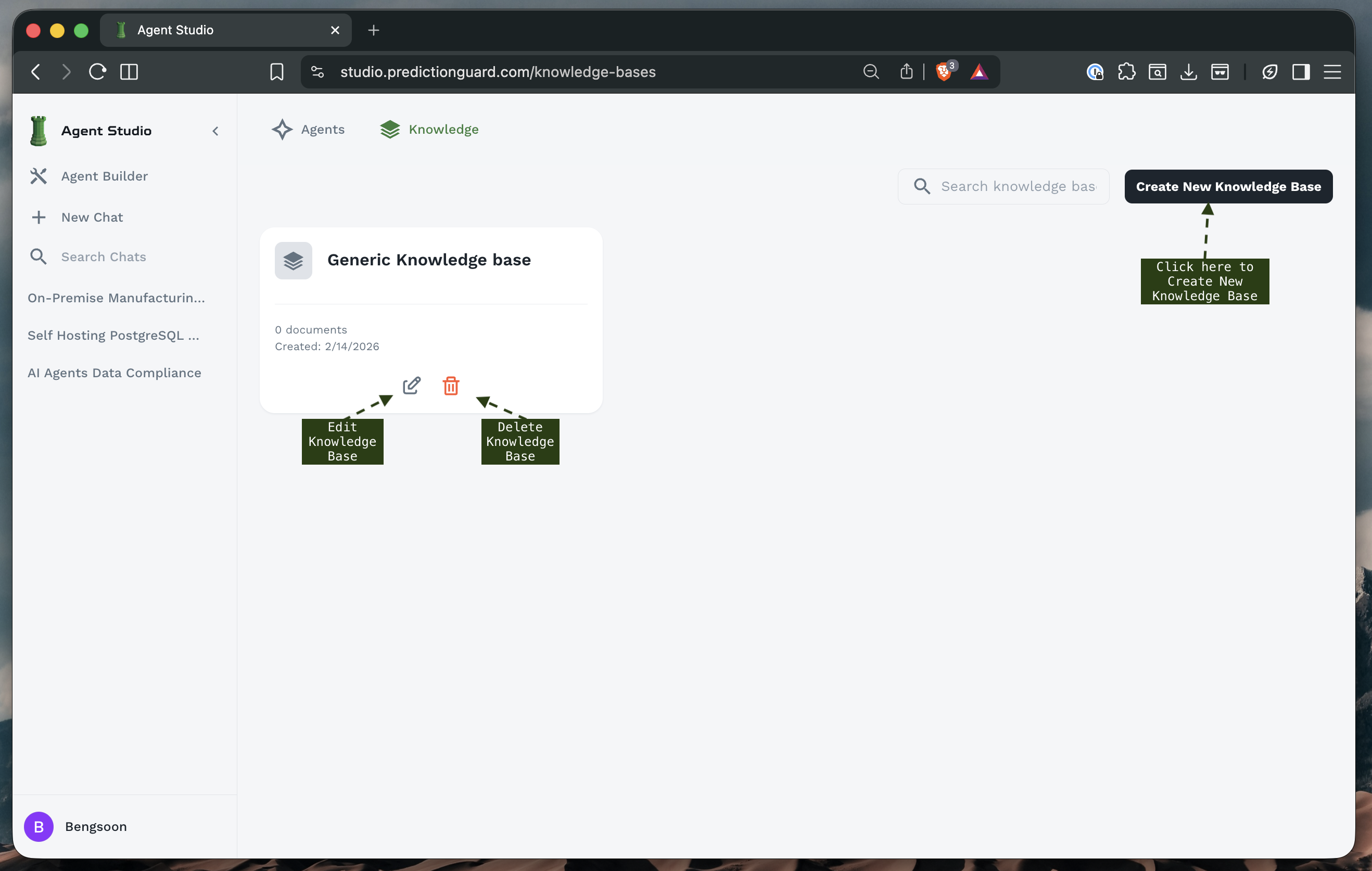

Knowledge Base Overview

The main Knowledge Base screen displays:

Knowledge Base Cards: Each showing:

• Name: Descriptive title
• Document Count: Number of documents in the KB
• Creation Date: When the KB was created
• Edit/Delete Options: Manage the knowledge base
• Document Thumbnails: Preview of included files

Example Knowledge Bases:

• Generic Knowledge Base: General organizational information
• On-Premise Manufacturing Predictive: Manufacturing-specific knowledge
• Self Hosting PostgreSQL: Database documentation
• AI Agents Data Compliance: Compliance and regulatory documents

Creating a Knowledge Base

Step 1: Initiate Creation

1. Click “Create New Knowledge Base” button in the top-right corner
2. The knowledge base creation form appears

Step 2: Basic Information

Knowledge Base Name (Required)

• Descriptive, clear name indicating the KB’s content
• Examples: “OWASP Guidelines”, “Product Documentation”, “Company Policies”

Description

• Explain what documents are included
• Indicate which agents should use this KB
• Note any specific focus areas or limitations

Example:

OWASP Guideline
This knowledge base contains comprehensive OWASP security
guidelines and best practices for secure application development.
Use with security-focused agents for vulnerability assessment
and secure coding recommendations.

Step 3: Advanced Settings

Embedding Model

Purpose: The model used to generate vector embeddings for semantic search

Available Models:

• bge-m3: Multilingual, high-quality embeddings (recommended)
• bridgetower: Multimodal embeddings (text + images)
• Other models based on your deployment

Choosing an Embedding Model:

Recommendation: Use bge-m3 for most use cases unless you have specific requirements.

Chunk Size

Range: 100-8192 characters

Default: 1500 characters

Purpose: Size of text segments for indexing and retrieval

How It Works:

• Documents are split into chunks of approximately this size
• Each chunk is embedded separately
• During search, individual chunks are matched and retrieved
• Multiple chunks can be retrieved from the same document

Choosing Chunk Size:

Best Practices:

FAQ documents: 800-1200 characters
Technical manuals: 1500-2000 characters
Legal documents: 2000-3000 characters
Code repositories: 1500-2500 characters

Example: With chunk size 1500:

• 3000-word document = ~6-8 chunks
• Each chunk contains 200-250 words
• Chunks overlap to maintain context

Chunk Overlap

Range: 0-500+ characters

Default: 100 characters

Purpose: Number of characters that overlap between consecutive chunks

Why Overlap Matters:

• Prevents breaking related information across chunks
• Maintains context at chunk boundaries
• Improves retrieval quality

Visual Example:

Chunk Size: 1500, Overlap: 100
Document: [------------------------3000 characters------------------------]
Chunk 1: [-------1500-------]
                        [100]  <- Overlap
Chunk 2:              [-------1500-------]
                                    [100]  <- Overlap
Chunk 3:                          [-------1500-------]

Recommended Overlap:

Chunk 500: Overlap 50 (10%)
Chunk 1500: Overlap 100-150 (7-10%)
Chunk 3000: Overlap 200-300 (7-10%)

Higher Overlap:

• ✅ Better context preservation
• ✅ Fewer missed connections
• ❌ More storage required
• ❌ Potential redundancy

Lower Overlap:

• ✅ More efficient storage
• ✅ Faster processing
• ❌ May break related content
• ❌ Context gaps at boundaries

Step 4: Create the Knowledge Base

1. Review all settings carefully (Advanced Settings are permanent)
2. Click “Create Knowledge Base”
3. Empty knowledge base is created
4. You’ll be directed to the document upload interface

Uploading Documents

After creating a knowledge base, you can add documents.

Supported File Formats

Agent Forge supports a wide range of document formats:

Document Formats:

• .pdf - PDF documents
• .doc - Microsoft Word (legacy)
• .docx - Microsoft Word
• .txt - Plain text files
• .md - Markdown files

Structured Data:

• .csv - Comma-separated values
• .json - JSON data files

Other Formats (check your deployment):

• .pptx - PowerPoint presentations
• .xlsx - Excel spreadsheets
• .html - Web pages
• .xml - XML documents

Document Management

Once uploaded, each document shows:

• Filename: Original document name
• Status: Processing status badge
• Toggle: Enable/disable document
• Delete: Remove document from knowledge base

Enable/Disable Documents:

• Use the toggle switch to enable or disable documents
• Disabled documents are not searched
• Useful for temporarily excluding documents without deleting

Testing Semantic Search

One of the most powerful features of Agent Forge is the ability to test your knowledge base’s semantic search directly - before attaching it to any agents. This helps you verify that your documents are properly indexed and that the search is returning relevant results.

Accessing the Preview Feature

To test semantic search on a knowledge base:

1. Navigate to the Knowledge section from the sidebar
2. Click on a knowledge base card to open it
3. Click the “Preview” button at the top of the knowledge base detail page
4. The semantic search testing interface will appear

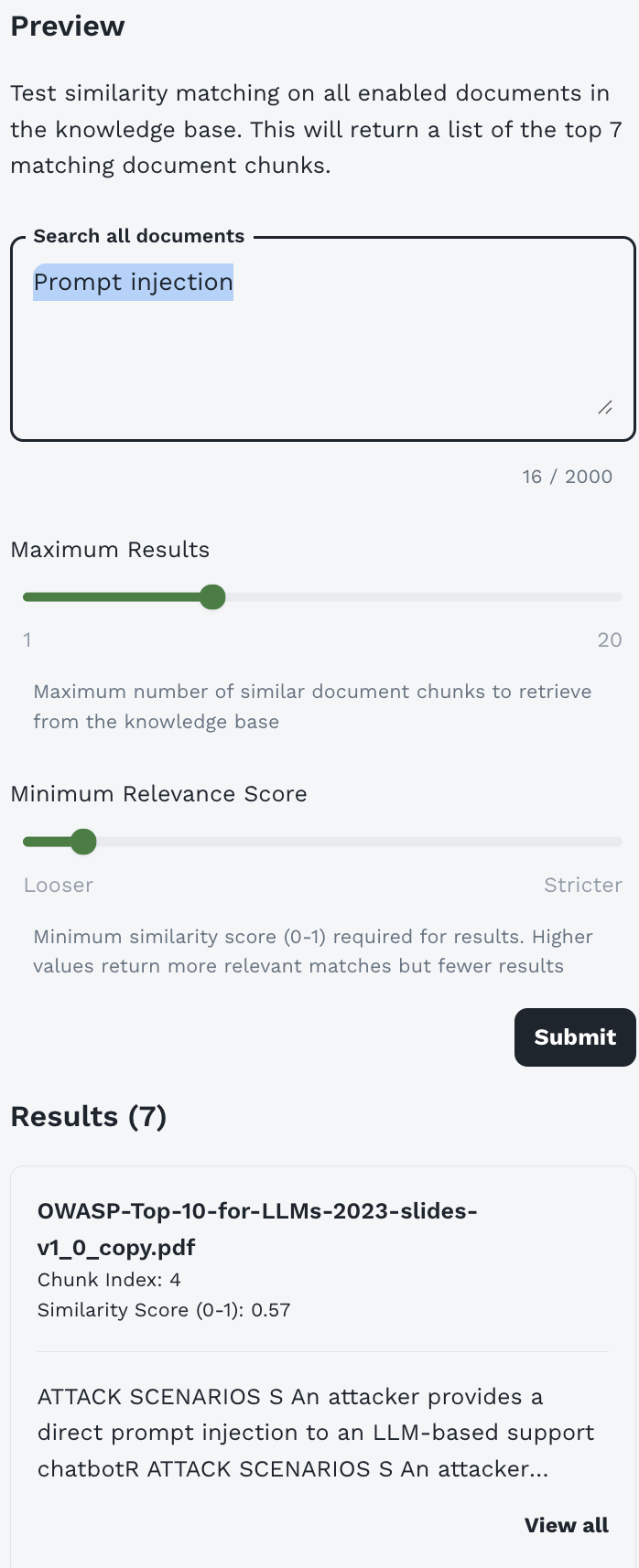

Understanding the Preview Interface

The Preview interface provides a complete testing environment for your knowledge base:

Header Description:

"Test similarity matching on all enabled documents in the knowledge base.
This will return a list of the top 7 matching document chunks."

This feature searches across all enabled documents in your knowledge base using the same semantic search technology that agents use.

Search Components

Search Query Box

Purpose: Enter your test query to search the knowledge base

Character Limit: 2000 characters

What to Test:

• Natural language questions
• Keywords and phrases
• Specific concepts or terms
• Edge cases and variations

Maximum Results Slider

Range: 1 to 20 chunks

Purpose: Control how many document chunks are retrieved

Default: Typically set to 7 (as shown in interface)

How to Use:

• Lower values (1-5): Test if top results are highly relevant
• Medium values (5-10): Standard testing (balanced)
• Higher values (10-20): See breadth of relevant content

What to Look For:

• Are the top results most relevant?
• At what point do results become less relevant?
• Do you have enough relevant chunks for complex queries?

Minimum Relevance Score Slider

Range: Looser (0.0) to Stricter (1.0)

Purpose: Filter results by similarity score threshold

How It Works:

• Each result has a similarity score from 0 to 1
• 0 = No similarity, 1 = Perfect match
• Only results above the threshold are returned

Slider Positions:

Testing Strategy:

1. Start with middle position
2. Run your test query
3. If too many irrelevant results: Move right (stricter)
4. If too few results: Move left (looser)
5. Find the sweet spot for your content

Understanding Search Results

After clicking Submit, you’ll see results displayed with detailed information:

Results Header

Results (7)

Shows the total number of chunks returned matching your criteria.

Individual Result Cards

Each result displays comprehensive information:

Document Name:

OWASP-Top-10-for-LLMs-2023-slides-v1_0_copy.pdf

The source document containing this chunk.

Chunk Index:

Chunk Index: 4

The position of this chunk within the document (0-indexed). Useful for understanding document structure.

Similarity Score:

Similarity Score (0-1): 0.57

How closely this chunk matches your query:

• 0.8-1.0: Highly relevant, near-exact match
• 0.6-0.8: Good relevance, strong match
• 0.4-0.6: Moderate relevance, partial match
• 0.2-0.4: Weak relevance, tangential
• 0.0-0.2: Very weak, likely irrelevant

Chunk Preview:

ATTACK SCENARIOS S An attacker provides a
direct prompt injection to an LLM-based support
chatbot ATTACK SCENARIOS S An attacker...

First ~150-200 characters of the chunk content. Lets you verify relevance at a glance.

View All Link: Click to see the complete chunk text (up to your configured chunk size).

Interpreting Results

What Good Results Look Like

High Relevance Scores:

• Top 3-5 results should have scores above 0.6
• At least one result should be above 0.7 for specific queries

Appropriate Content:

• Chunks directly address the query
• Information is accurate and complete
• Context is preserved (no mid-sentence cuts)

Good Distribution:

• Results come from relevant documents
• Multiple perspectives if applicable
• Logical ordering by relevance

Example Good Result:

Query: "prompt injection attacks"
Result #1:
Document: OWASP-Top-10-for-LLMs-2023.pdf
Chunk Index: 12
Similarity Score: 0.87
Preview: "Prompt injection attacks occur when an attacker
manipulates the input to an LLM in order to override its
original instructions..."
✅ Highly relevant, directly addresses query

Warning Signs

Low Relevance Scores:

All results below 0.5 = Potential issues:
- Documents don't contain relevant information
- Chunk size may be too large/small
- Query phrasing doesn't match document language

Irrelevant Content:

Query: "authentication best practices"
Result: Content about "database optimization"
Similarity Score: 0.45
❌ Not relevant - may indicate:
- Missing content in knowledge base
- Poor document organization
- Need for additional documents

Broken Context:

Preview: "...the process requires that before starting
you must ensure..."
❌ Mid-sentence start, missing context
- May need increased chunk overlap
- Document structure issues

Testing Strategies

1. Comprehensive Coverage Testing

Goal: Verify knowledge base covers intended topics

Process:

1. List 10-15 key topics your KB should cover
2. Create test queries for each topic
3. Run searches and check results
4. Identify gaps in coverage
5. Add missing documents

Example Test Plan:

Knowledge Base: "Security Best Practices"
Test Queries:
✓ "SQL injection prevention" → Good results (0.78)
✓ "XSS mitigation" → Good results (0.82)
✗ "CSRF protection" → No relevant results
  → Action: Add CSRF documentation
✓ "Authentication methods" → Good results (0.71)
✗ "Session management" → Low scores (0.43)
  → Action: Improve existing docs or add content

2. Relevance Threshold Testing

Goal: Find optimal minimum relevance score for your KB

Process:

1. Choose 5 representative test queries
2. Start with score at "Looser" (left)
3. Run each query, note result quality
4. Move slider right incrementally
5. Find sweet spot where:
   - Good results are included
   - Irrelevant results are filtered out

Documentation:

Query: "GDPR compliance requirements"
Looser (0.3): 15 results, 8 relevant, 7 irrelevant
Medium (0.5): 9 results, 8 relevant, 1 irrelevant ✓
Stricter (0.7): 4 results, 4 relevant, 0 irrelevant ✓
Recommendation: Set agent minimum score to 0.5-0.7

3. Chunk Size Validation

Goal: Verify chunk size settings are appropriate

Process:

1. Run several test queries
2. Click "View all" on results
3. Check if chunks are:
   - Complete thoughts/paragraphs
   - Not cut off mid-sentence
   - Contain sufficient context
   - Not overly long with irrelevant info

If chunks are problematic:

• Too small (broken context): Create new KB with larger chunk size
• Too large (diluted relevance): Create new KB with smaller chunk size
• Poor boundaries: Increase chunk overlap in new KB

4. Query Variation Testing

Goal: Ensure KB works with different phrasings

Process:

Test the same concept with different queries:
Query 1: "How do I prevent SQL injection?"
Query 2: "SQL injection protection methods"
Query 3: "Defending against SQL attacks"
Query 4: "Database input sanitization"
All should return similar, relevant results.
If not → May need more diverse documents or better document coverage

Best Practices for Testing

Before Attaching to Agents:

1. ✅ Test with 20-30 representative queries
2. ✅ Verify top results have scores above 0.6
3. ✅ Check that chunks contain complete, useful information
4. ✅ Confirm coverage of all intended topics
5. ✅ Test edge cases and unexpected queries
6. ✅ Document optimal relevance threshold

Regular Testing:

• After adding documents: Test that new content is retrievable
• Monthly: Run standard test queries to ensure consistency
• After changes: Verify updates haven’t broken existing searches

Document Your Findings:

Knowledge Base: Security Guidelines
Tested: 2024-02-14
Optimal Settings:
  - Minimum Relevance Score: 0.55-0.65
  - Recommended Max Results: 8-10
Coverage:
  ✓ OWASP Top 10
  ✓ Authentication
  ✓ Encryption
  ✗ API Security (needs addition)
Action Items:
  - Add API security documentation
  - Update outdated sections on TLS

Troubleshooting Search Issues

Issue: No results returned

• Check: Are documents enabled?
• Check: Is minimum relevance score too strict?
• Try: Move slider to “Looser”
• Try: Rephrase query with simpler terms
• Solution: May need to add content on this topic

Issue: Low relevance scores across the board

• Check: Do documents actually cover this topic?
• Check: Is query phrasing very different from document language?
• Try: Use terminology from your documents
• Solution: May need to add or improve documents

Issue: Too many irrelevant results

• Check: Is minimum relevance score too loose?
• Try: Move slider to “Stricter”
• Try: Be more specific in query
• Solution: Consider removing off-topic documents

Issue: Results are out of order by relevance

• Check: Scores are very close (e.g., 0.67 vs 0.66)
• This is normal: Slight variations in scoring
• Solution: If top results are relevant, this is fine

Using Test Results to Configure Agents

After thorough testing, use your findings to configure agents:

In Agent Builder → Resources & Knowledge → Customize Search Settings:

1. Minimum Relevance Score: Set based on your testing

   If testing showed 0.55 works well → Set agent to 0.5-0.6

2. Maximum Results: Based on how many chunks are typically relevant

   If top 5-8 results usually relevant → Set to 8-10

3. Maximum Context Size: Based on chunk sizes and result counts

   10 results × 1500 chars/chunk = 15,000 minimum context size

Example Testing Workflow

Complete Example: Testing a new Security KB

Step 1: Initial Upload
- Uploaded 15 security documents
- All processing completed
Step 2: Coverage Testing
Query: "SQL injection" → 0.82 ✓
Query: "XSS prevention" → 0.79 ✓
Query: "CSRF attacks" → 0.34 ✗ (needs content)
Query: "Authentication" → 0.71 ✓
Query: "Session security" → 0.48 ⚠️ (weak)
Step 3: Threshold Testing
Tested at 0.4, 0.5, 0.6, 0.7
Optimal: 0.55 (good balance)
Step 4: Chunk Quality Check
Viewed full chunks - mostly complete
Some cut mid-paragraph (acceptable)
Step 5: Recommendations
- Add CSRF documentation (missing)
- Enhance session security content (weak)
- Set agent minimum relevance: 0.55
- Set agent max results: 8
Step 6: Actions Taken
- Added CSRF guide document
- Re-tested: now 0.73 ✓
- Configured security agent with findings
- Documented for team

Next Steps After Testing

Once you’re satisfied with test results:

1. Configure Agents - Attach KB to agents with optimal settings
2. Monitor Performance - Track agent response quality
3. Iterate - Continuously improve based on user feedback
4. Document - Keep notes on what works best

Best Practices for Knowledge Bases

Document Preparation

Before Uploading:

1. Clean Documents:

   • Remove unnecessary headers/footers
   • Fix formatting issues
   • Remove duplicate content
   • Ensure text is selectable (not scanned images without OCR)

2. Organize Content:

   • Use clear headings and structure
   • Break long documents into logical sections
   • Include table of contents for long docs
   • Use consistent formatting

3. Add Metadata:

   • Include document titles
   • Add creation/update dates
   • Note document version if applicable
   • Include author or source information

Document Quality:

✅ Well-structured PDFs with clear headings
✅ Updated, current information
✅ Accurate, fact-checked content
✅ Clear, professional writing
❌ Scanned images without text layer
❌ Outdated, deprecated information
❌ Duplicate or redundant content
❌ Poor quality or corrupted files

Organizing Knowledge Bases

Strategy 1: By Domain

• “Security Knowledge Base” - All security-related docs
• “Compliance Knowledge Base” - Regulatory and compliance docs
• “Product Documentation” - Product guides and manuals

Strategy 2: By Audience

• “Customer Facing KB” - Public information
• “Internal Operations KB” - Internal procedures
• “Technical Team KB” - Developer documentation

Strategy 3: By Update Frequency

• “Static Policies KB” - Rarely changing policies
• “Product Updates KB” - Frequently updated features
• “Current Events KB” - Time-sensitive information

Maintenance

Regular Reviews:

• Audit content quarterly
• Remove outdated documents
• Update changed information
• Add new relevant documents

Quality Checks:

• Test knowledge base with sample queries
• Verify agents are retrieving correct information
• Check for gaps in coverage
• Monitor user feedback on agent responses

Editing Knowledge Bases

To edit an existing knowledge base:

1. Navigate to Knowledge section
2. Click on the knowledge base card
3. Edit Basic Information:
   • Update name
   • Modify description
4. Manage Documents:
   • Upload additional documents
   • Enable/disable existing documents
   • Delete unwanted documents
5. Click “Update Knowledge Base”

Attaching Knowledge Bases to Agents

Once created, attach knowledge bases to agents:

1. Go to Agent Builder
2. Create or edit an agent
3. Navigate to “Resources & Knowledge” section
4. Select “Knowledge Bases” dropdown
5. Choose one or more knowledge bases
6. Configure search settings (optional)
7. Save agent

See Building Agents - Resources & Knowledge for detailed instructions.

Testing Knowledge Bases

Verification Steps

After uploading documents:

1. Create a test agent with the knowledge base attached
2. Ask questions you know are answered in the documents
3. Verify responses cite correct information
4. Test edge cases - questions with no answer in KB
5. Check relevance - are retrieved chunks actually relevant?

Sample Test Queries

Direct Fact Retrieval:

"What is the maximum file size allowed?"
Expected: Agent retrieves and cites exact limit from docs

Conceptual Questions:

"Explain the process for creating a new agent"
Expected: Agent synthesizes information from relevant sections

Multi-Document Queries:

"What are the differences between security settings and access control?"
Expected: Agent combines information from multiple docs

Not in Knowledge Base:

"What's the weather today?"
Expected: Agent acknowledges this isn't in its knowledge base

Troubleshooting

Common Issues

Issue: Agent not using knowledge base

• Solution:
  • Verify KB is attached to agent
  • Check documents are enabled
  • Lower minimum relevance score
  • Increase maximum results

Issue: Irrelevant results retrieved

• Solution:
  • Increase minimum relevance score
  • Reduce chunk size for more precise matching
  • Review document quality
  • Remove off-topic documents

Issue: Document upload fails

• Solution:
  • Check file size (under 50MB)
  • Verify file format is supported
  • Ensure file isn’t corrupted
  • Try uploading again

Issue: Processing takes very long

• Solution:
  • Large files take longer to process
  • Complex PDFs may need more time
  • Check status periodically
  • Contact admin if stuck for hours

Issue: Chunks don’t contain complete information

• Solution:
  • Increase chunk size
  • Increase chunk overlap
  • Restructure source documents for better segmentation
  • Note: Can’t change existing KB - create new one

Performance Optimization

Faster Search:

• Use focused knowledge bases (fewer documents)
• Remove redundant documents
• Optimize chunk size for your use case
• Set appropriate maximum results limit

Better Results:

• Higher quality source documents
• Appropriate chunk size for content type
• Good chunk overlap (7-10%)
• Regular content updates

Advanced Topics

Semantic Search Explained

Knowledge bases use semantic search, not keyword search:

Keyword Search (Traditional):

Query: "How do I reset my password?"
Matches: Documents containing words "reset" and "password"

Semantic Search (Agent Forge):

Query: "How do I reset my password?"
Matches: Documents about:
- Password recovery
- Account access restoration
- Credential reset procedures
Even if they don't use exact words "reset password"

Embedding Models

Embeddings convert text into numerical vectors that capture meaning:

"The cat sat on the mat" → [0.234, -0.456, 0.789, ...]
"A feline rested on the rug" → [0.221, -0.442, 0.801, ...]

Similar meanings produce similar vectors, enabling semantic search.

Vector Databases

Knowledge bases use vector databases (e.g., FAISS, Pinecone, Milvus) to:

• Store embeddings efficiently
• Perform fast similarity search
• Scale to millions of documents
• Enable real-time retrieval

Security Considerations

Sensitive Information

Before uploading:

• Review documents for sensitive data
• Redact confidential information
• Consider access control implications
• Follow your organization’s data policies

Remember:

• Knowledge base content may be visible to all agents using it
• Agents with PII detection can mask sensitive data, but prevention is better
• Audit who has access to agents using sensitive KBs

Access Control

Currently, knowledge bases are organization-wide resources:

• Any agent creator can attach any KB
• Users chatting with agents see information from attached KBs
• Plan knowledge base scope accordingly

Best Practices:

• Create separate KBs for different sensitivity levels
• Use clear naming to indicate confidentiality
• Document which agents should use which KBs
• Regular access audits

Next Steps

Now that you understand knowledge bases:

1. Build Agents - Create agents that use your knowledge bases
2. Chat with Agents - Test agents with knowledge base integration
3. Iterate and Improve - Refine knowledge bases based on agent performance
